New Galvano Scanner System AGS-F301

- It Helps to Improve Productivity and Joining Strength
of Our Single Mode Fiber Laser Welder -

Nippon Avionics Co., Ltd. (Head office in Tokyo, Japan), a subsidiary of NEC Corporation, announced Galvano Scanner System, AGS-F301, today which can demonstrate its performance to the maximum level by using it in combination with our single mode fiber laser welder, LW-F1000.

Outline of Product

Galvano Scanner is a device to scan the laser beam in high speed and wide range by use of a motor and a reflection mirror.

By using it in combination with our single mode fiber laser welder, LW-F1000, this system can demonstrate the feature of the welder and realizes high productivity and joining strength. It will provide solutions to various applications requiring spot welding, seam welding and hermetic sealing welding.

By introduction of the Galvano Scanner System this time, we will contribute to the improvement of productivity in various fields such as electronics, automobile, medical and energy.

New Product Features

1) High Productivity by High Speed Scanning of Continuous Output Laser

By scanning the laser beam, continuously output from the single mode fiber laser welder, in high speed by this system, multi-point welding and wide area welding can be accomplished in a short period of time. High output of continuous 1 kW maximum can be accommodated.

2) Wide Welding Area (150mm Square)

As the laser beam from the single mode fiber laser welder maintains high parallelism and narrow beam diameter without spreading the beam even at a long irradiation distance, wide work distance and welding area can be secured.

Furthermore, because of the deep focal depth, variable height within the welding area can be accommodated.

3) High Joining Strength

Because the laser is scanned in high speed in the vicinity of the joining point, wide and deep melting area is formed, and joining strength is increased.

4) Stable Welding

By employing the digital control which suppresses the positional drift due to the temperature change, stable welding with high positioning reproducibility can be realized.

Application Examples

Areas where high speed and multi-point welding are required
Example: Electronic components (capacitor, coil, connector, sensor, etc.), electrical components for automobiles, medical
Areas where high energy density is required for welding and air tightness, such as Copper (Cu) and Aluminum (Al)
Example: Energy field (secondary battery, capacitor, bus bar, etc.)

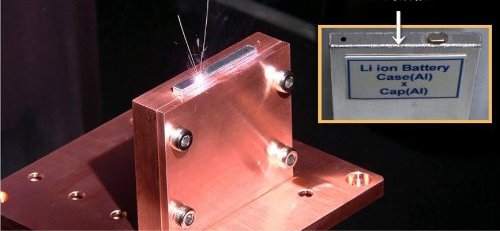

: All Circumferences Welding of Rectangular Lithium-ion Battery

Free Sample Welding

We are offering free sample welding so that the customer can verify the performance of this machine with their own sample. Please feel free to apply for this service.

Reference

Single mode fiber laser welder, LW-F100

This is a welding machine utilizing the high quality single mode fiber laser beam.

Because the single mode laser beam has higher parallelism comparing to the multi-mode, the beam can be focused thin, and high energy density and deep melting are realized.

Because miniature objects for welding and high reflective material, such as Al and Cu, can be joined by non-contact and in high quality due to high power output of 1 kW maximum, this machine is favorably accepted in the market since its introduction in July 2012.

: Single Mode Fiber Laser Welder
LW-F1000
