Digital Force Gauge

FG-400 & TJ Series
Photo:FG-400 & TJ Series
  • * FG-400 and TJ series are sold separately.
  • Compact and light weight
  • 3-way power supply
  • Display hold function is equipped
  • Easy zero adjustment function
  • Automatic recognition of the type of sensor
  • Judgment function (High & Low) is equipped
  • * Calibration certificate for FG-400 is not free of charge. Please ask sales representative for quotation.

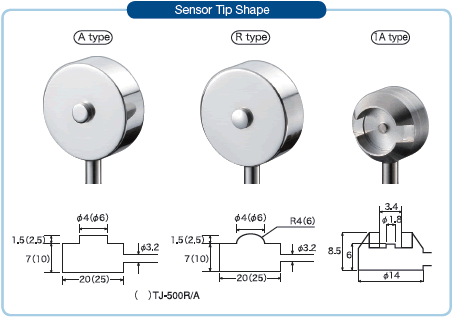

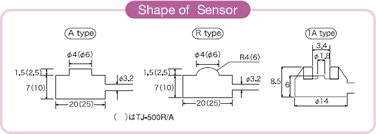

Image:Sensor Tip Shape

  FG-400
Display 4digi (t 0000-9999)N
Zeroing Adjustment Automatic regulation by switching
Hold Function Sample/Peak
Interface RS-232C
Power Source Use by AA type battery, Ni-H type battery or Dedicated AC adapter (AC100 - 240V 1Φ)
Dimension / Weight W77 x D140 x H27mm ≈300g
  TJ-1A TJ-20R or TJ-20A TJ-100R or TJ-100A TJ-500R or TJ-500A
Measuring Range 0 - 10N 0 - 196N 0 - 980N 0 - 4900N
Critical Load 20N 294N 1470N 7350N
Accuracy ±2% (of full scale)

Pressure Sensor for Incorporation into Equipment.

  TJS-1R TJS-20R TJS-100R TJS-100A-NA124 TJS-500A-NA126
Measurement Range 0 - 10N 0 - 196N 0 - 980N 0 - 980N 0 - 4900N
Critical Load 20N 294N 1470N 1470N 7350N
Accuracy ±3% (of full scale)
Applicable Welding Head NA-121,122,123
NA-131,132,142
NA-111,112
NA-151,152,153
NA-124
NA-125
NA-154
NA-155
NA-126
Photo: Examples for integration of the sensors into the Welding head
Examples for integration of the sensors into the Welding head

Photo: Pressure Sensor for Incorporation into Equipment.

Joining Monitor

Click the "Contact Us" button on the right.
(for dealer information, sample test or technical consultation)
