Pulse Heat (Hot Bar) Reflow Soldering

Reflow System Head

The reflow system head is for the Pulse Heat or the Hot Bar Soldering Machine to apply pressure and hold the object to be joined in soldering or heat caulking.
Heater tip type, heater tool type, and pen type are available.

Inquire about this product

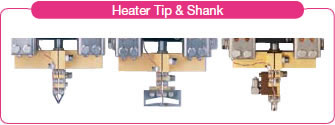

Heater Tip Type Reflow System Head

Because of the Vertical Direct Force Application Mechanism, There is No Deflection by the Applied Force

Long Life is Realized by Use of a Photo Senso

Items	NA-111	NA-112
Pressure Range	0.7 - 5N	5 - 65N
Pressure Method	Spring
Stroke	It's up to Drive Unit
Drive Method	Electrical slider (NA-201PB-B), Air (NA-221), Manual (NA-231)
Dimension	W106 x D48 x H287mm	W106 x D48 x H285mm
Weight	≒0.6kg	≒0.6kg

Heater Tool Type Reflow System Head

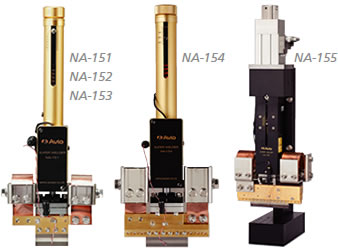

**Heater tool Type NA-151, NA-152,NA-153,NA-154,NA-155**

Provided with Air Cooling Port and Flatness Adjustment Function
Water Cooled Shank is Equipped as Standard (NA-154, NA-155)

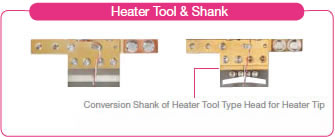

Heater Tip can be Used by Use of a Conversion Shank

Items	NA-151	NA-152	NA-153	NA-154	NA-155
Pressure range	1.2 - 7N	5 - 70N	20 - 150N	40 - 300N	100 - 600N
Pressure method	Spring
Stroke	It depends on adapted drive unit.				30mm
Drive method	Electrical slider (NA-201PB-B), Air (NA-221), Manual (NA-231)			Electrical slider (NA-202PB-B), Air (NA-222)	Air
Dimensions	W124 x D54.8 x H298mm			W145 x D64.5 x H332mm	W217 x D230 x H700mm
weight	≒ 1kg			≒ 2.2kg	≒ 20.1kg

Pencil type (build-to-order) Reflow System Head

Pencil type is supports multi-point caulking and automation

Spring type (300N)

Item	Spring type (300N)
Dimensions	W26.2 × D101 × H196.2mm
Weight	820g

Spring type (65N)

Item	Spring type (65N)
Dimensions	W21 × D47 × H192.1mm
Weight	360g

Normal type

Item	Normal type
Dimensions	W18 × D42 × H166.9mm
Weight	160g

Other Reflow Head

Head with Integrated Drive for Pulse Heat (Hot Bar) Soldering Machine

Drive Unit for Pulse Heat (Hot Bar) soldering machine

Accessories for Reflow System Head
