In N2 gas Type/Semi-Automatic Type
Crystal & SAW, Optical device, Sensor, MEMS
Features
- Various Operation modes available for R&D and mass production.
- PKG size 2~150mm - Rectangular,round,polygon
- Easy Operation & Programming
- Automatic program verification

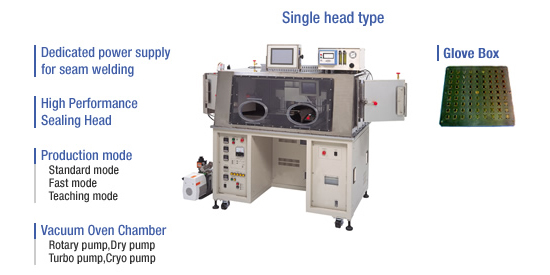

Single head type
Twin head type
- PKG size 2~10mm / Rectangular
- Production mode / Standard mode / Fast mode
- Automatic program verification
| Single head type | Twin head type | |
|---|---|---|
| Power Source | AC200V 3Φ 30A | AC200V 3Φ 30A |
| N2 Gas | 0.2MPa~0.8MPa | 0.2MPa~0.8MPa |
| Water | 0.2MPa | 0.2MPa |
| Dimensions / Mass | 2200W x 900D x 1550Hmm 450Kg | 2300W x 800D x 1300Hmm 550Kg |
