Soldering of FPC/FFC and PWB
- Soldering of FPC/FFC on PWB, which is indispensable in electronic assembly, is achieved. Soldering of FPC to FPC is also possible.
- Pulse heating unit controls temperature of heater tip by feeding back tip temperature and heating time. It has heating and cooling process. Cooling process prevents solder wicking after heat and it is suitable for solder bonding.
Related video
Please be careful for the volume adjustment as this movie contains sound.

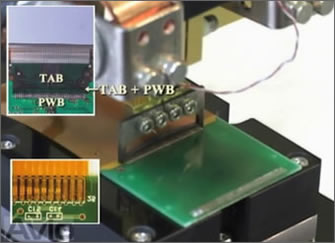

Soldering of FPC to PWB
| Joining Method | Pulse Heat (Hot Bar) Reflow Soldering |
|---|---|
| Processing Method | Soldering |
| End Products | Electronic Components |
Sample test
We will be pleased to test your sample with our proposed joining method, and return it with a report.
