Accessories for Resistance Welder

Accessories

System Head Basic Configuration

Photo:System Head Basic Configuration

Straight Type

Photo:Straight Type

Shift Type

Photo:Shift Type

Upper Electrode Accessory

Head Electrode (CrCu) Electrode (Mo) Type Holder/Horn Clamp
NA-121 EH-062-02 - Straight S121-16THD* -
Shift S121-16HORN S121-CLMP
EH-125-02 EH-125-00 Straight S121-32THD -
Shift S121-32HORN S121-CLMP
NA-122 EH-125-02 EH-125-00 Straight S122-32THD* -
Shift S122-32HORN S122-CLMP
EH-250-02S EH-250-00S Straight S122-64THD -
Shift S122-64HORN S122-CLMP
NA-124 EH-250-02S EH-250-00S Straight S124-64THD -
EH-60-C EH-80-00 Straight S124-80THD* -

Lower Electrode Accessory

Head Electrode (CrCu) Electrode (Mo) Type Holder/Horn Holder Base/Clamp
NA-121 EH-062-02 - Straight S12X-16BHD 12X-B-F
Shift S12X-16BHORN 12X-BS
EH-125-02 EH-125-00 Straight S12X-32BHD 12X-B-F
Shift S12X-32BHORN 12X-BS
NA-122 EH-125-02 EH-125-00 Straight S12X-32BHD 12X-B-F
Shift S12X-32BHORN 12X-BS
EH-250-02S EH-250-00S Straight S12X-64BHD 12X-B-F
Shift S12X-64BHORN 12X-BS
NA-124 EH-250-02S EH-250-00S Straight S12X-64BHD 124-B-F
EH-60-C EH-80-00 Straight S12X-80BHD 124-B-F

System Head Accessories

System Head Basic Configuration
System Head Basic Configuration

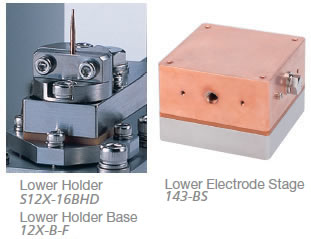

Lower Holder Accessory

Lower Holder Accessory

Lower Stage

Stage
Stage
Leveling Stage
Leveling Stage
11X-BS-F-MM

Base, Pallet and Microscope Set

Base
Base
Pallet
Pallet
Microscope, Microscope Mounting Stand, LED Light
Microscope, Microscope Mounting Stand, LED Light

Weld Cable

Weld Cable

PWB Repairing Equipment
PWB Repairing Equipment

Welding Head

Click the "Contact Us" button on the right.
(for dealer information, sample test or technical consultation)
