Welding System Head for Resistance Welding
Welding System Head for Resistance Welding
Compact, high-performance system head suitable for precision resistance welding.
It is used in combination with a drive unit. Realizes stable pressurization.
Features
- High reliance welding by straight pressurization method
- It equips with soft landing & teaching function
- Operation speed can be switched by 6 steps
- Operation position can be set by 4 points
Supplies Specifications

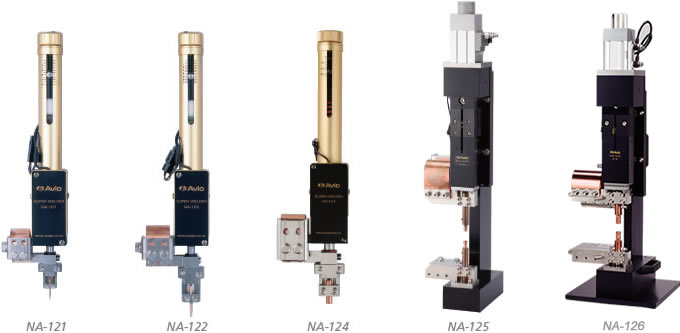

| Items | NA-121 | NA-122 | NA-123 | NA-124 |
|---|---|---|---|---|
| Pressure Range | 0.7 - 5N | 5 - 65N | 20 - 150N | 40 - 300N |
| Pressure Method | Spring | Spring | Spring | Spring |
| Drive Method | Option: Motor, Air, Manual | Option: Motor, Air, Manual | Option: Motor, Air, Manual | Option: Motor, Air |
| Diameter of Electrode | Φ1.6mm | Φ3.2mm | Φ6.4mm | Φ8.0mm |
| Dimension | W74 x D48 x H285mm | W82 x D50 x H301mm | W82 x D50 x H301mm | W97.8 x D56.6 x H326mm |
| Weight | ≒0.6kg | ≒0.8kg | ≒0.8kg | ≒1.5kg |
| Items | NA-125 | NA-126 |
|---|---|---|
| Pressure Range | 100 - 600N | 300 - 1800N |
| Pressure Method | Spring | Spring |
| Drive Method | Air | Air |
| Diameter of Electrode | Dedicated Electrode Attached (EH-F-02) | Dedicated Electrode Excluded (EH-200) |
| Dimension | W212.2 x D204.0 x H794.5mm | W309 x D315 x H908mm |
| Weight | ≒21.5kg | ≒60kg |
| tems | NA-131 | NA-132 |
|---|---|---|
| Pressure Range | 0.7 - 5N | 5 - 65N |
| Pressure Method | Spring | Spring |
| Drive Method | Option: Motor, Air, Manual | Option: Motor, Air, Manual |
| Diameter of Electrode | □3.2mm | □3.2mm |
| Dimension | W76 x D51 x H299mm | W76 x D51 x H299mm |
| Weight | ≒0.7kg | ≒0.7kg |
| Items | NA-141 | NA-142 | NA-143 |
|---|---|---|---|
| Pressure Range | 0.5 - 5N | 5 - 65N | 40 - 150N |
| Pressure Method | Spring | Spring | Spring |
| Drive Method | Option: Motor, Air, Manual | Option: Motor, Air, Manual | Option: Motor, Air |
| Diameter of Electrode | Φ3.2mm | Φ3.2mm | Φ3.2mm |
| Dimension | W135.2 x D49.8 x H268mm | W152.2 x D49.8 x H268mm | W174.2 x D61.8 x H302mm |
| Weight | ≒1.3kg | ≒1.6kg | ≒2.7kg |
